Aepryus Calculator 1.2 Help Document

Table of Contents

Introduction

Aepryus Calculator is a scientific RPN calculator optimized for use with other applications. The main focus of the development of AepCalc was towards usability, but with an eye towards aesthetics.

The AepCalc sports all of the standard scientific functions; handles octal, decimal and hexadecimal modes; and includes a clever memory facility.

This calculator was developed in order to solve certain deficiencies prevalent in the standard windows calculator program. Those major problems being:

AepCalc solves these problems, by offering an OnTop mode which is easily accessed off the main menu; has three window size modes (small, medium and large) which show various amounts of the calculator; is an RPN calculator; maps the keyboard keys on the right side of the keyboard directly to the buttons displayed on the calculator face (in large mode), speeding the memorization of the keys and hopefully looks much better than the most calculator apps.

AepCalc has a 10 number stack and a fair amount of flexibility in the formatting of the display of the numbers. (See Options below)

[Return to Table of Contents]

Registering

Aepryus Calculator Trial Version, is exactly the same as the full version except that the keyboard keys are only good for 360 hits.  After 360 hits the keyboard keys will cease to function and the mouse and the screen buttons will be needed to use the calculator.

The calculator can be used indefintely with the mouse and screen buttons.

Alternatively, the calculator could be registered for the reasonable charge of $20 (US).  At which point, a registration key will be sent to the user which will permanently enable the keyboard keys (and disable the introduction message)

If you would like to register the application please visit Aepryus Software's web site at:

             http://www.Aepryus.com/

If you have any questions, comments or any other correspondence with Aepryus please send e-mail to WriteUs@Aepryus.com.  Thank you very much for any input that you might have.


[Return to Table of Contents]

Reverse Polish Notation

To individuals new to Reverse Polish Notation or RPN calculators, the first thing one notices is that there is no Clear button. This is because a clear button is not needed. It takes sometime to get used to this and other idiosyncrasies of RPN calculators, but once an individual gets the hang of RPN, they become fervent supporters.

The main advantage of RPN is that parentheses are not needed, which means that complex calculations can be made without having to keep track of which nested level of parentheses is currently being entered. This also means that calculations require fewer keystrokes.

Basically, in normal notation the operator (+ - * /) comes between the operands. Polish logician Jan Lukasiewicz discovered advantages to putting the operator before the operands. RPN puts the operator after the operands (thus Reverse Polish Notation).

For example, the following calculation ((32+3)*4 + (12-2))/(34 + 3*(2+1)), in a conventional calculator would require a parenthesis key, at best, and a memory function, at worst and would generally be a real pain. However, in RPN the calculation becomes:

 32 , 3 + 4 * 12 , 2 - + 34 , 3 , 2 , 1 + * + /

In the RPN calculation above, the ',' represents the ENTER key.

To get the basic idea of RPN, here is a simple example: in order to calculate 2+3, type: 2 , 3 +

where the ',' again represents the enter key.

An important concept in RPN calculators is the concept of the Stack. Each RPN calculator has a stack consisting of a number of storage locations. Aepryus Calculator has 10 stack positions.  Typing in numbers pushes the number on to the stack, which means it places the number on the bottom of the stack. An operand will operate on the bottom one or two numbers of the stack, removing (popping) them in the processes and then pushing the result back on to the stack. So, in the above example first 2 gets pushed on to the stack:

X: 2

Then 3 gets pushed on to the stack:

 Y: 2
 X: 3

Then the operator '+' pops both numbers off the stack, calculates the sum of the operands and pushes the result back on to the stack:

 X: 5

Hopefully, this is a good introduction to RPN calculating.


[Return to Table of Contents]

Function Reference

The following is a list of the function buttons on the AepCalc and what they do.  (NL = Num Lock or F12)  For some operating systems, it is very difficult (impossible?) to keep the NUM LOCK light on, so the F12 key should be used instead.



Button Description Key
log10x \
10x (Inverse of above) NL+\
multiplicative inverse Scroll Lock
y to the power of x NL+Scroll Lock
square root of x Pause
x squared NL+Pause
sin of x Insert
arcsin of x NL+Insert
cos of x Home
arccos of x NL+Home
tan of x PageUp
arctan of x NL+PageUp
natural logarithm of x (logex) Delete
e (2.71828...) to the power of x NL+Delete
additive inverse (switches the sign of the number) End
Pi, 3.14159... NL+End
exponential, used for entering in numbers in scientific notation PageDown
factorial of x (where x is a positive integer) NL+PageDown
switches the numbers in the x and y stack positions Up Arrow
pushes the last number in the x position back on to the stack NL+Up Arrow
brings up the memory screen in store mode (See Memory) Left Arrow
pops the top number of the stack off Down Arrow
brings up the memory screen in recall mode (See Memory) Right Arrow

[Return to Table of Contents]

Memory

The Memory facility allows a user to store up to 9 numbers for later use. From the main screen the memory window can be brought up in either [STORE] mode by hitting the left arrow, in order to save the bottom number of the stack, or [RECALL] mode by hitting the right arrow, in order to push a number onto the bottom of the stack.

There are three ways to move to a particular memory slot:

Once the slot is chosen it can be selected by either: The Memory screen can be canceled by: Each of the nine slots can be assigned a quick retrieve key. While the cursor is on a particular slot, hit any letter on the keyboard. The letter will be displayed on the right side of the memory screen. Now when the main calculator screen has the focus, anytime that key is hit, the corresponding memory slot's number will be pushed onto the stack.

This can be used to store fundamental constants such as c (the speed of light) or h (Planck's constant) as shown in the example.

[Return to Table of Contents]

Menu

The menu is brought up by right clicking on the calculator anywhere below the title bar.

On Top - When clicked on, the calculator will always appear above all other applications. This will allow for a calculation to be made and be displayed, even after switching to a second application which may be obscuring the entire screen.

Small - In Small view, only the top two numbers of the stack are displayed. (The stack still holds ten positions, however)

Medium - In Medium view all ten numbers of the stack are displayed.

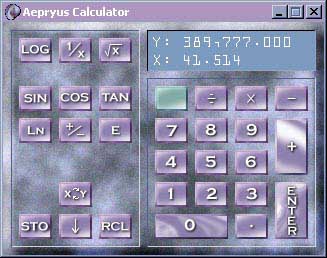

Large - In Large view only the top two numbers of the stack are displayed. However, all of the
push buttons are also displayed. The push buttons, both allow a mouse to be used with the
calculator and also make the key mappings as explicit as possible.

Copy - This copies the bottom number of the stack onto the clipboard. Hitting <ctrl>-<insert> will accomplish the same thing.

Paste - This pushes the number currently, stored in the clipboard onto the stack. Hitting
<shift>-<insert> will accomplish the same thing.

Options - Selecting this will bring up the options dialog box.

Help - This will bring up the Aepryus Calculator help system.

About - This will display the About information.


[Return to Table of Contents]

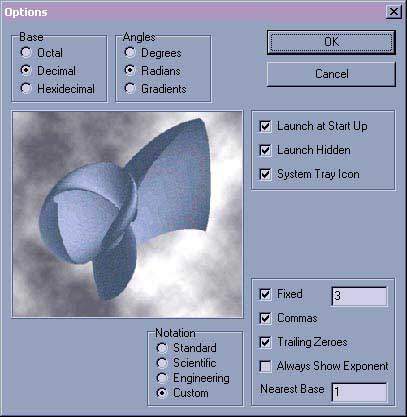

Options

Base - This is the number base which numbers are entered and displayed in.

Angles - This determines how the angles are being entered in calculations. There are 360 degrees in a circle and 90 degrees in a right angle.  There are 2p radians in a circle and p/2 radians in a right angle. There are 400 gradients in circle and 100 gradients in a right angle.

Launch at Start Up - Clicking this on will add an AepCalc shortcut to the startup menu, which will cause the program to automatically, launch when the computer is turned on.

Launch Hidden - This will cause the program to launch only as a system tray icon when launched.  This is useful when having the program launch at Start Up, so that the calculator doesn't automatically, pop up, but the tray icon does.

System Tray Icon - This will create a system tray icon for the AepCalc.  Double clicking on the tray icon will bring the calculator up and/or bring it to the front.  Hovering the mouse over the tray icon will display the current value at the bottom of the stack.  Also, double right clicking on the icon will terminate the AepCalc program.

Notation
    Standard - trailing zeroes off, always exponent off, nearest base = 1.
    Scientific - trailing zeroes on, always exponent on, nearest base = 1.
    Engineering - trailing zeroes on, always exponent on, nearest base = 3.
    Custom - you decide…

Fixed - If clicked on, all numbers will display a maximum number of decimal places specified in the text box to the right of the check box. Otherwise, all decimal places will be displayed.

Commas - If clicked on, commas will be inserted every three place values.

Trailing Zeroes - If clicked on, trailing zeroes will be displayed, otherwise all trailing zeroes will be removed from the display.

Always Exponent - If clicked on, the exponent will always be shown. If clicked off, the exponent will only be shown when not enough room exists to display the number in full form.

Nearest Base - The nearest base is the number which the exponents base is rounded to when displaying the exponent. For example, in Engineering notation the Nearest base is 3, meaning that the exponent is always shown in multiples of three. In custom mode, this can be set to anything from 1 to 5.


[Return to Table of Contents]

What's New

        Version 1.2
               New and Improved
               More Control Over Display
               New Shareware Mechanism

               Fixed
               Exp(x) function bug
               +/- function bug

        Version 1.1
               New and Improved
               Improved Help File
               Install and Uninstall Support
               New Shareware Duration Mechanism
               Improved Copy / Paste
               Added support for 16 and 256 color displays
               All menu options can now be executed from keyboard or buttons
               Tray Icon Popup Menu

               Fixed
               Log of 0 crashing problem
               Numerous error recovery problems
               Autostart mechanism now works
               F12 added as a backup to the NUM LOCK key, if it doesn't work (Win95)
               Keyboard (+ - * /) now work, in addition to the Numpad keys
               Various problems with minimizing and restoring


[Return to Table of Contents]

Contacting Aepryus

If you have any questions, problems or comments please send e-mail to

        WriteUs@Aepryus.com

or visit our web site at

        http://www.Aepryus.com/

[Return to Table of Contents]



Last Modified March 9, 2001
